Butterfly Valve Handle Standard 50-80mmNB 2'' - 3''

Name: Butterfly Valve Handle Standard 50-80mmNB 2'' - 3''
Brand: atom
SKU: 6518001
Availability: InStock

SKU: 6518001 MPN: 3234078

Sale Sold out

Shipping calculated at checkout.

Quantity

Handles to suit notched and wafer body butterfly valves

UNSPSC	40141620
Type	Handle

Manual ON/OFF service
Positive-stop gripper with integral locking lug ensures full open/closed operation
Model 12 and 12N valves have a detent plate which bolts on the valve body in each of the four quadrants
Model 22L valve has a pre-notched top flange with on/off detent positions

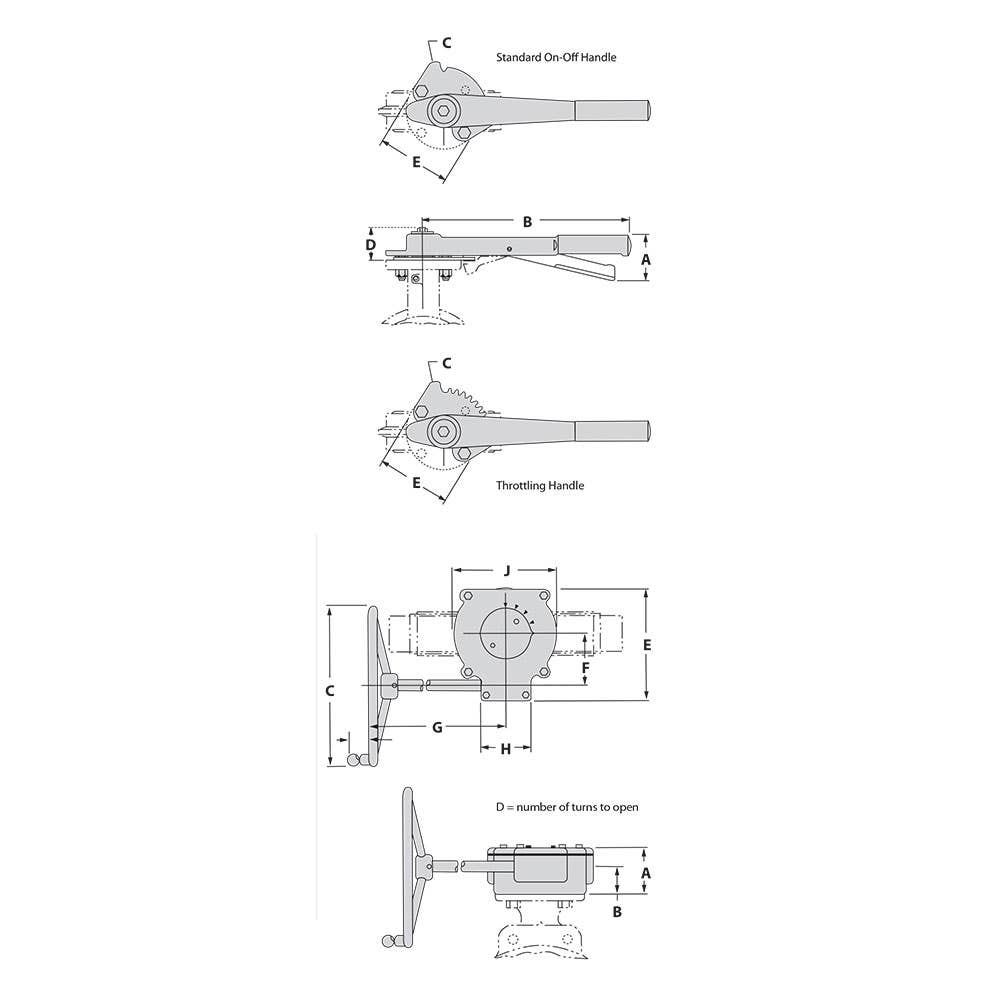

Size: 50 - 80mmNB (2\\ - 3\\ )
A: 60.3mm (2-3/8\\)
B: 241.0mm (9-1/2\\)
C: 69.9mm (2-3/4\\)
D: 36.5mm (1-7/16\\)
E 102.0mm (4\\)
