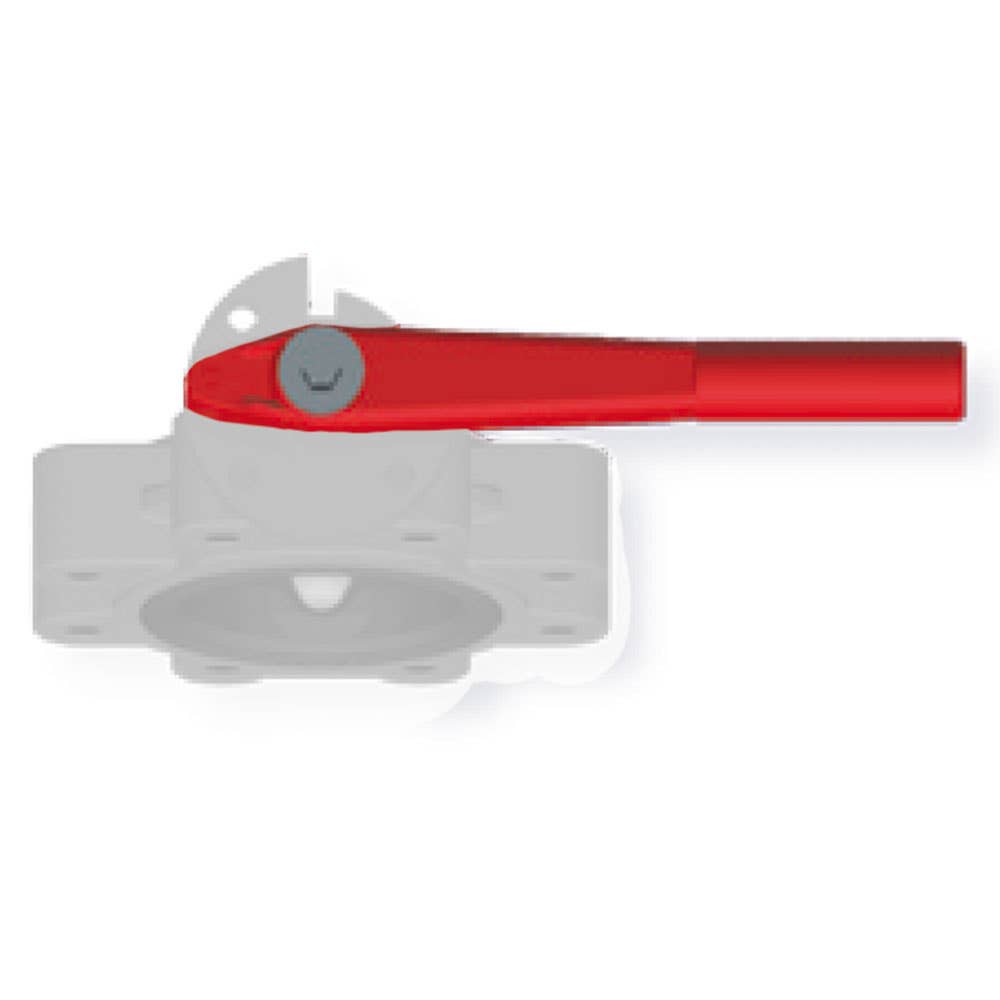

Butterfly Valve Handle Standard 300mmNB 12"'

Name: Butterfly Valve Handle Standard 300mmNB 12"'
Brand: atom
SKU: 6518004
Availability: InStock

SKU: 6518004 MPN: 3227947

Sale Sold out

Shipping calculated at checkout.

Quantity

Handles to suit notched and wafer body butterfly valves

Manual ON/OFF service
Positive-stop gripper with integral locking lug ensures full open/closed operation
Model 12 and 12N valves have a detent plate which bolts on the valve body in each of the four quadrants
Model 22L valve has a pre-notched top flange with on/off detent positions

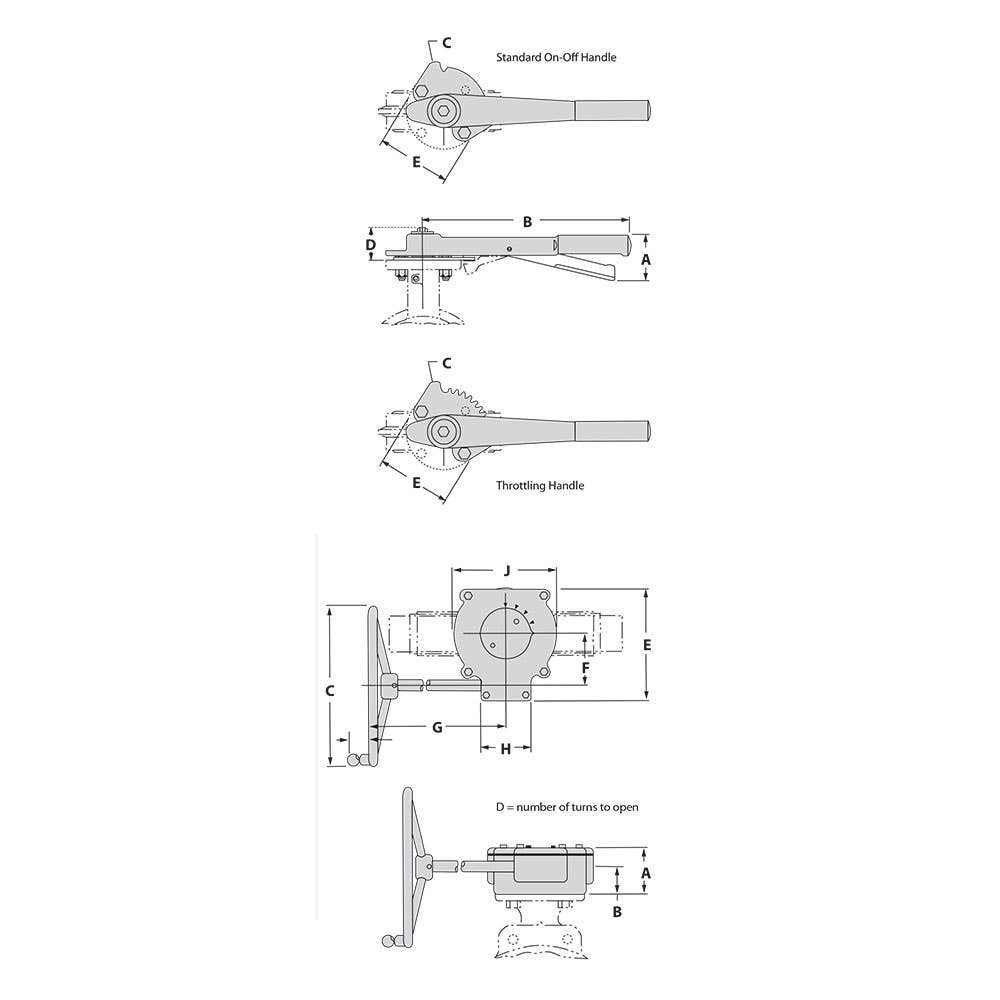

Size: 300mmNB (12\\')
A: 69.9mm (2-3/4\\)
B: 483.0mm (19\\)
C: 102.0mm (4\\)
D: 42.9mm (1-11/16\\)
E: 152.0mm (6\\)
