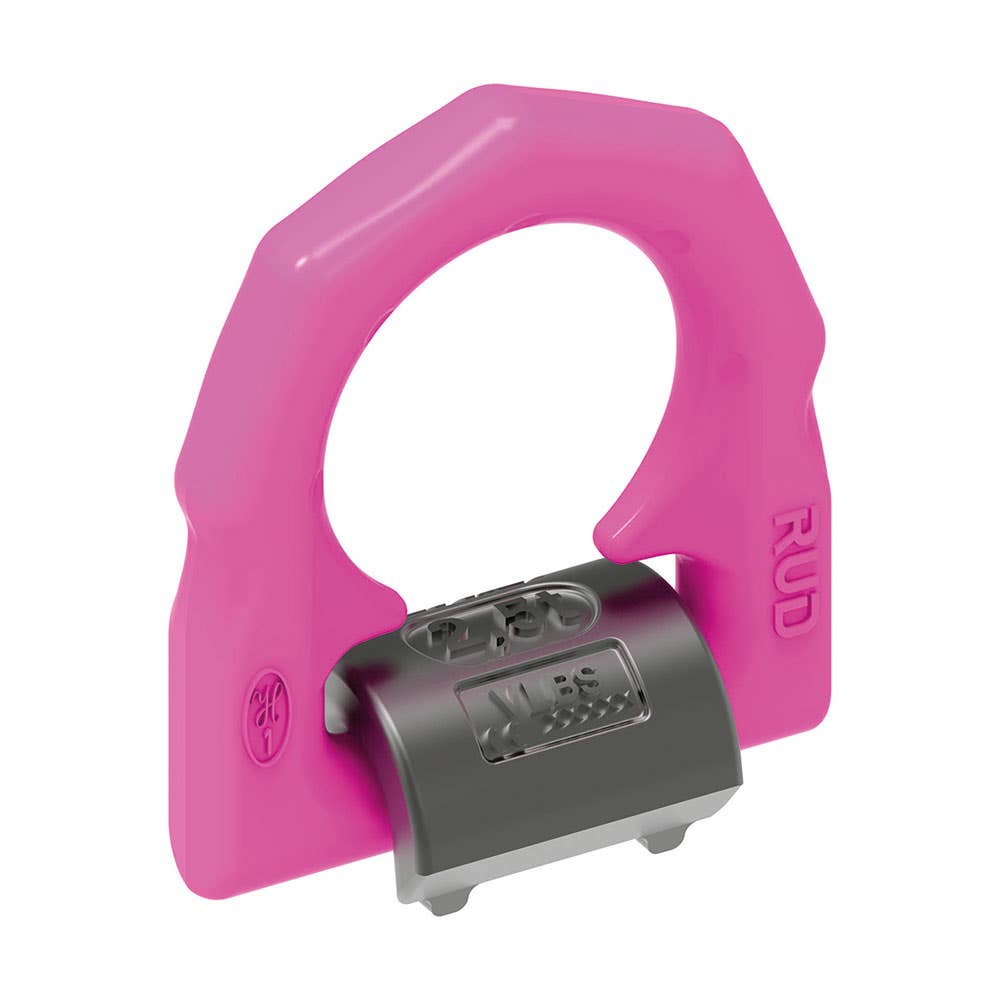

VLBS Weld On Load Ring Without Spring 10t

Name: VLBS Weld On Load Ring Without Spring 10t
Brand: Rud
SKU: 90048024
Availability: InStock

SKU: 90048024 MPN: 7993118

Sale Sold out

Shipping calculated at checkout.

Quantity

UNSPSC	31161610
Catalogue Page	581

Multi-directional loading
Forged alloy steel load ring
Ready for welding
WLL: 10.0t
C: 67mm
E: 71mm
F: 26.5mm
Weight: 2.9kg
Universal lifting point for welding with a diverse operating range for engineering and plant manufacturing
The suspension ring optimises function providing better support at side loading as well as protecting the clamping spring
The clamping spring works as a noise reduction and holds the suspension ring in the requested position
Suspension ring pivots 180°
Suspension ring & weld-on-block of the VLBS-U are undetachable
Suspension ring can be angled into position (VLBS-U).
