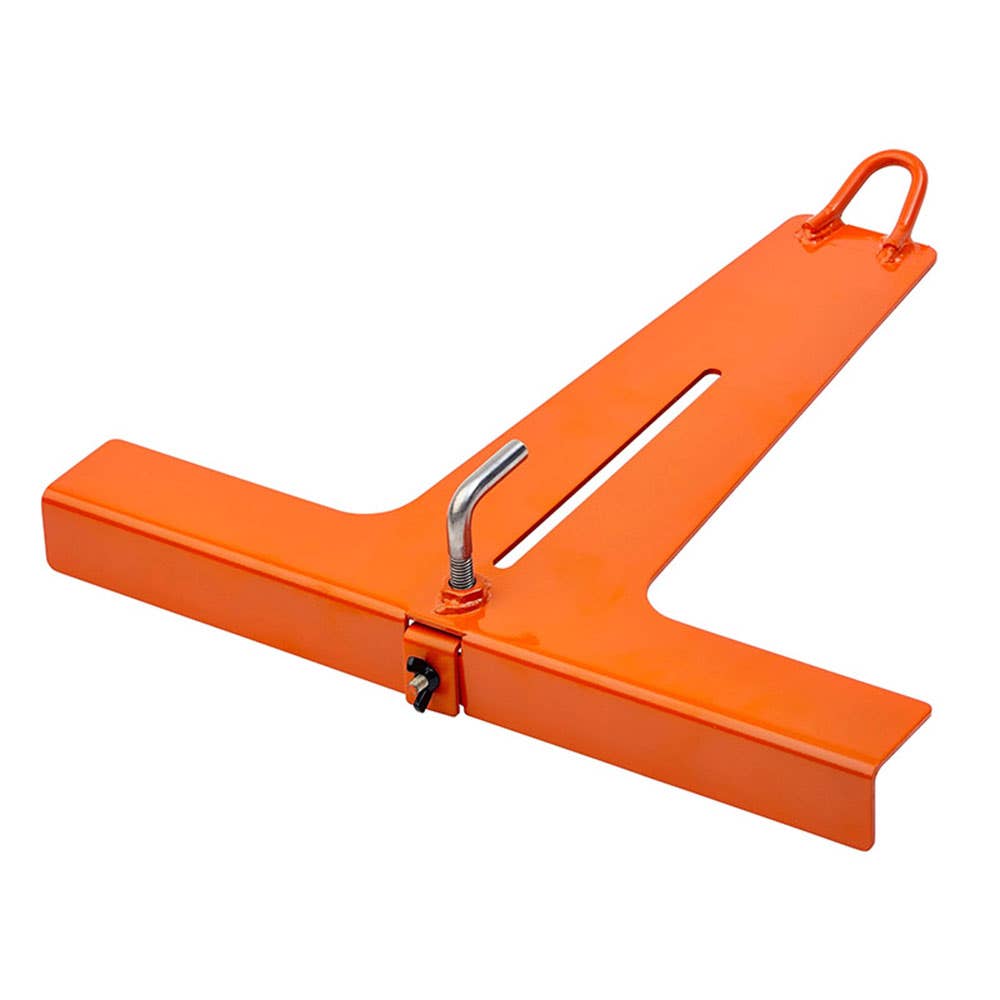

Roof Anchor T-Bar
Roof Anchor T-Bar
SKU: 257000 MPN: HSTBA
Regular price
$0.00
/
per
EA
Regular price
/
per
EA
Sale price
$0.00
/
per
EA
Shipping calculated at checkout.

| UNSPSC | 46182306 |
|---|---|
| Type | Anchor |
- Conforms to ASNZS 1891.4 requirements
- An affordable temporary and reusable alternative to installation of a permanent purlin style anchor
- Compact design and lightweight materials provide a tried and tested safety solution
- Rated for up to a 140kg user
- Can withstand fall arrest forces up to 22kN (It is important to ensure that the structure to which any LINQ Tetha anchor plate is installed, has sufficient strength (refer to ASNZS 1891.4) to sustain the applied load)
- The Tetha T-Bar has an easy to use double tie off L-screw and wing nut applicator that clips onto the roof edge (for suitable profiles only)
- Can be used as a temporary anchor point in applications along a roof line where no permanent anchor point exists
- Quick installation and removal
- High strength alloy steel - ultimate breaking strength: 22kN (min)
- Zinc galvanised plated; over coated with Orange Electrophoresis plating for double corrosion resistance
- Vital Test Compliance: Static strength: 22kN for 3 minutes (Ultimate breaking test approx. 28kN)
