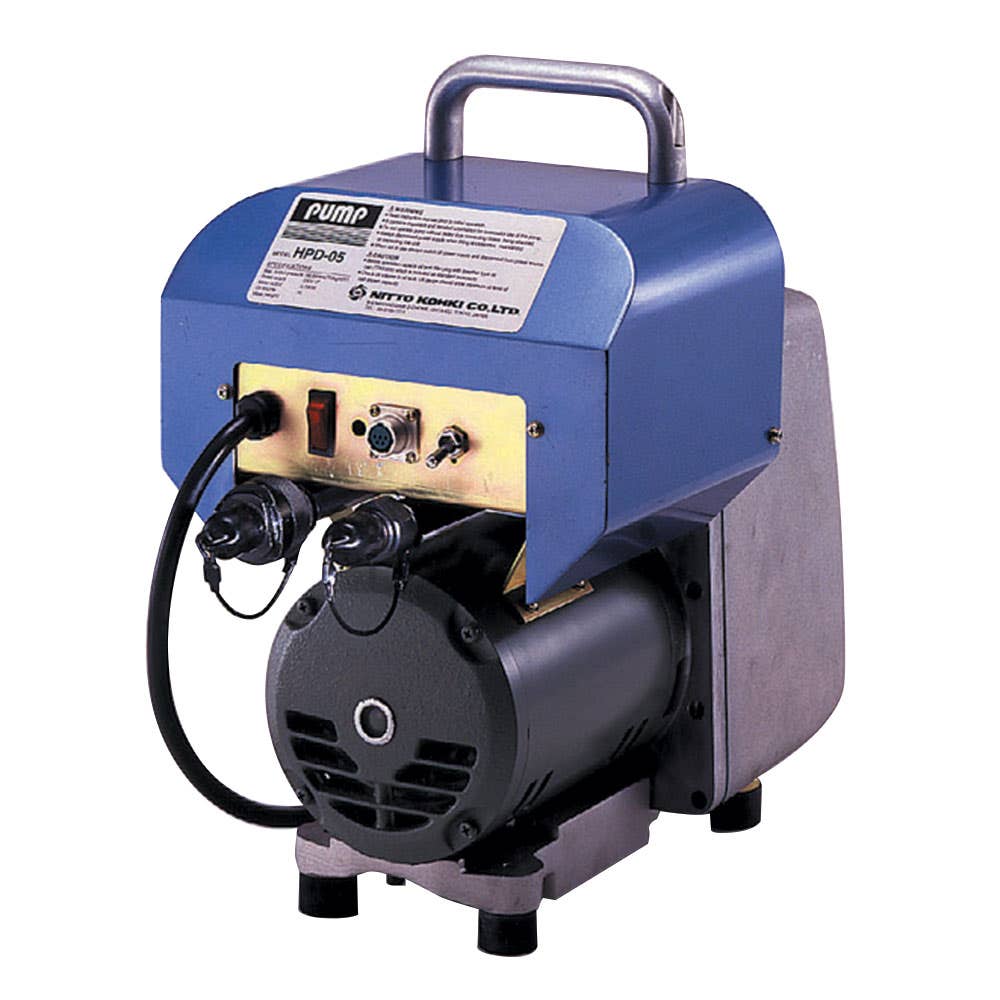

Pump Hydraulic Selfer Double Acting For Flow 1.44-0.66L/min Nitto

Name: Pump Hydraulic Selfer Double Acting For Flow 1.44-0.66L/min Nitto
Brand: Selferace
SKU: 92318000
Availability: InStock

SKU: 92318000 MPN: NTHPD05

Sale Sold out

Shipping calculated at checkout.

Quantity

Inching and auto return function

Inching and auto return function
Twin line hydraulics for speed and efficiency
Selfer ace pump HPD-05 is required to operate Selfer ace Punches HS06-1322, HS07-1624 and HS11-1624
Power Source (Single Phase):\t110V AC 60Hz / 220V AC 50Hz
Max. Output Pressure: 68.65 MPa
Output (At No load): 1.44l/min / 1.20l/min
Output (At 68.65MPa): 0.66l/min / 0.55l/min
Motor: 0.4kW 4P
Reservoir Capacity:\t 4l
Discharge Port: Rc 3/8\\
Electro-Magnetic Valve: 4 way 3 position valve
Weight: 32.5 kg
