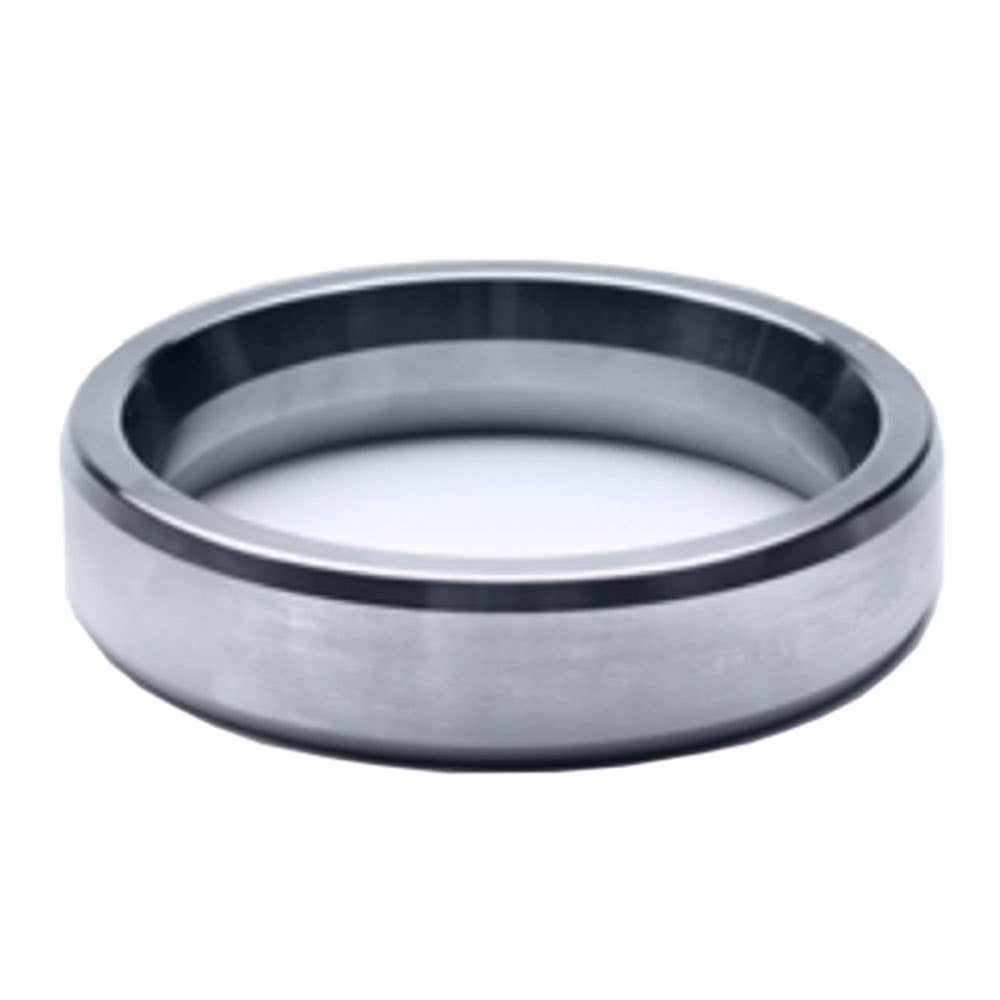

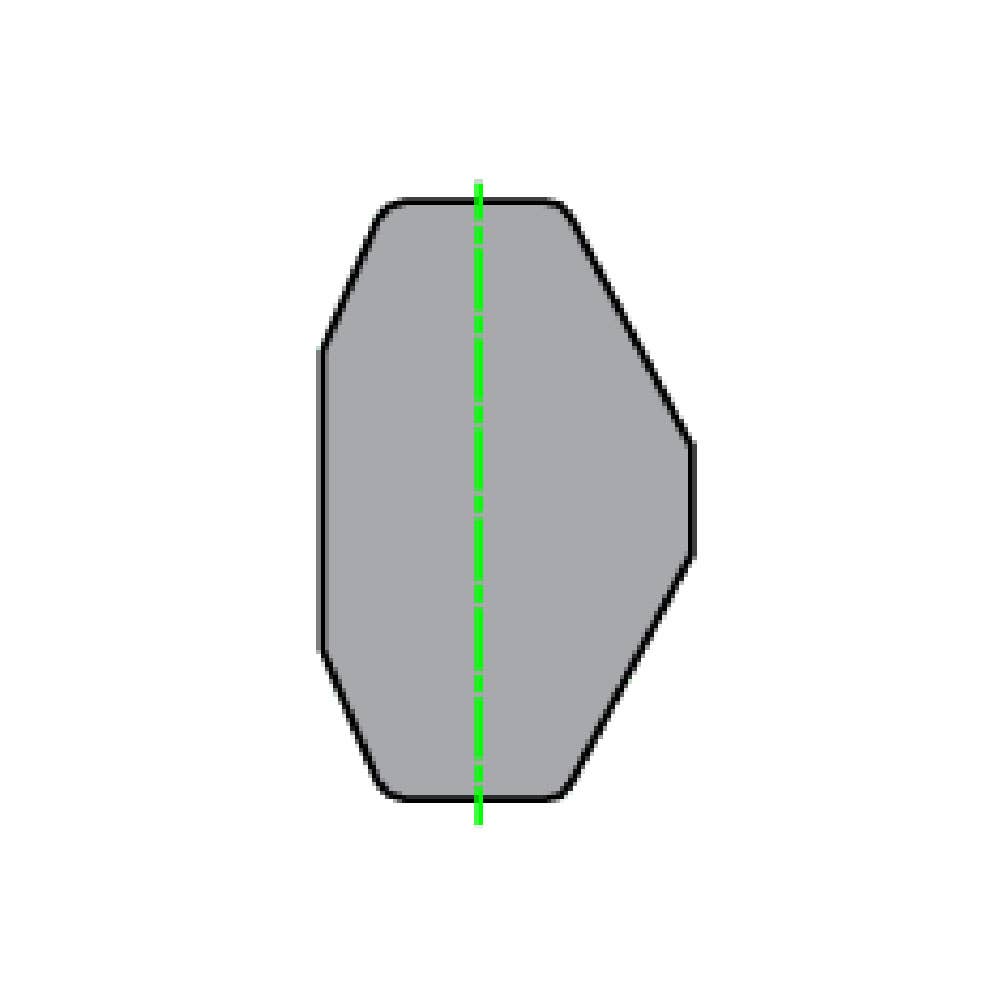

The RX style gasket is designed to fit the modern flat bottom groove and is interchangeable with the standard Style R ring type joint (larger flange make up distances will result)
Manufactured in accordance with API 6A and ASME B16.20, to suit API 6B and ASME B16.5 flanges
Selected sizes incorporate a pressure passage hole to allow for pressure equalisation each side of the sealing faces
RX Ring Gasket - Low Carbon Steel (S)
Ring No.: RX 24S
Size: 50mmNB (2\\)
Rating: API 3/5000
