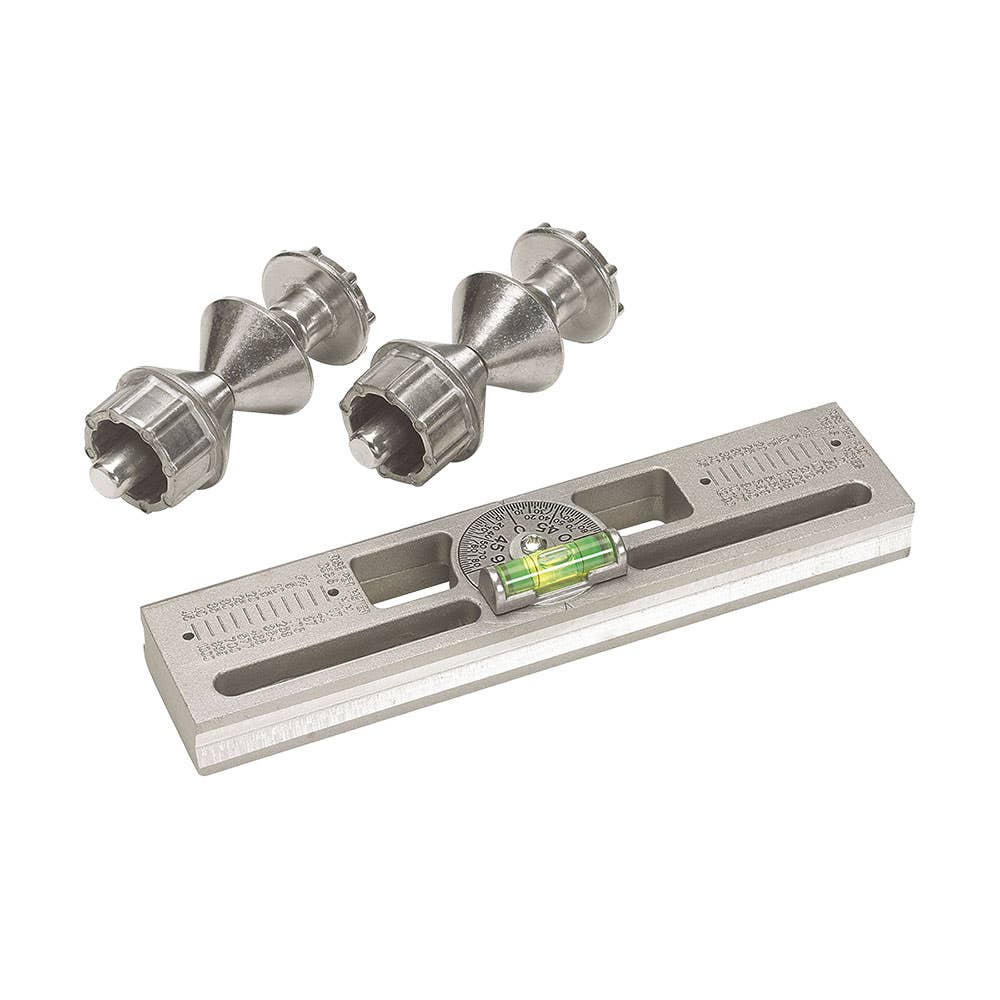

Curv-O-Mark Universal 33 Spirit Level

Name: Curv-O-Mark Universal 33 Spirit Level
Brand: Weldclass
SKU: 90258010
Availability: InStock

SKU: 90258010 MPN: KC-J1904

Sale Sold out

Shipping calculated at checkout.

Quantity

Designed primarily for pipefi tting applications, the Universal Level is

UNSPSC	27111802
Catalogue Page	252

Designed primarily for pipefi tting applications, the Universal Level is a valuable tool for any craft required to use a level or a plumb bob
For structural ironworkers, the powerful holding magnets provide an extra hand
Electricians will fi nd the Level useful in laying out and lining up heavy conduit
With the aid of a handy conversion chart, carpenters can use the Level for the layout of roof rafters
Multi-purpose tool features a 360-degree adjustable protractor dial bubble (DSL) that ensures accurate leveling and permits the following additional uses
Setting a predetermined pitch of a string of pipe
Setting the angle of laterals to a precise degree
Trueing vertical runs
Two-holding flanges
Includes two cast-in 25-pound magnets (exerting a 50-pound pull) to securely hold the unit in place on any steel surface, including the underside of a pipe or beam
Permits hands-free leveling, a welcome aid in tight spots
Bubble is mounted on a protector dial, the Level may be used in any position and still read accurately
Magnets are cast in and do not interfere with the use of the Level on nonmagnetic materials, such as aluminum, copper, lumber, stone or other materials requiring leveling
For aligning pipe flanges (two-holding), the Level comes with a two-threaded, selfaligning conical spacer and conical nut and bolt units
Designed to fit any size bolt hole spaced between 21/4 in and 8 in centers on flanges
Permits the orientation of fl ange bolt holds for any size pipe
