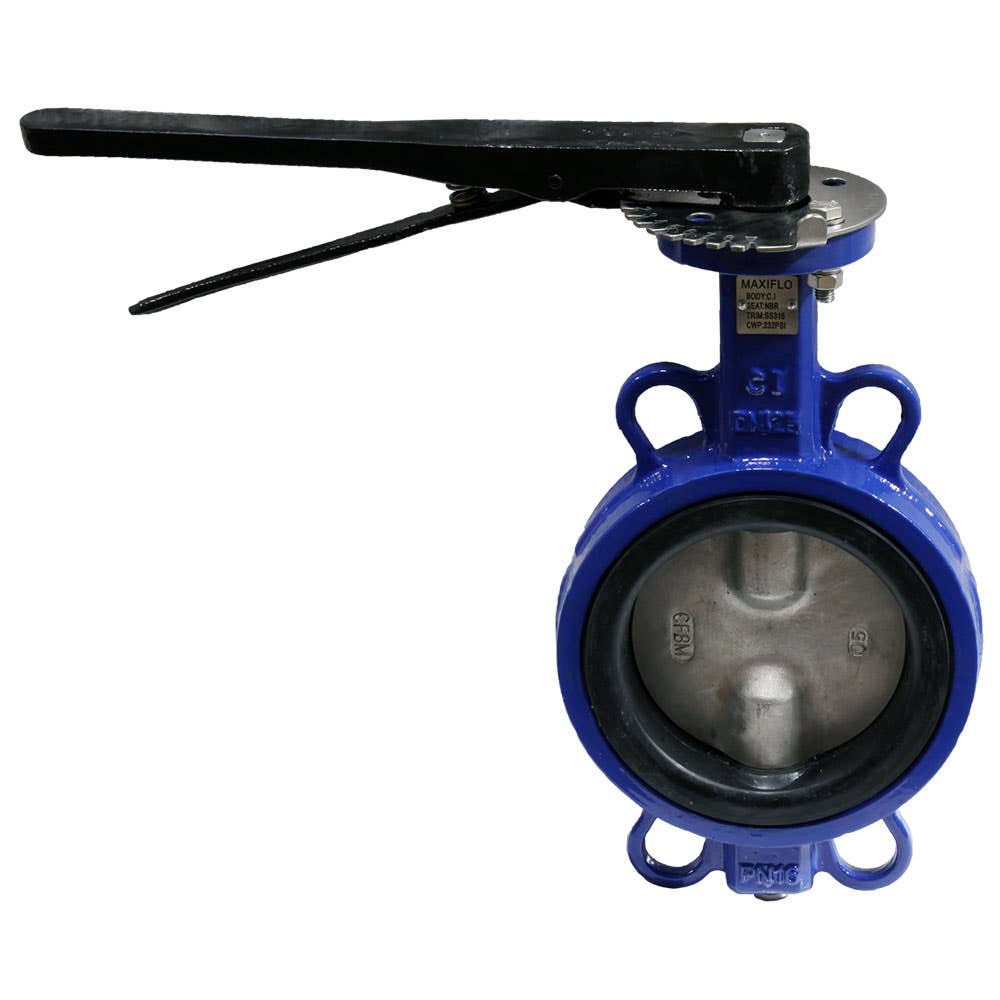

Butterfly Valve Wafer Body NBR Seat 125mm 5" 232psi VW95 AAP Industries

Name: Butterfly Valve Wafer Body NBR Seat 125mm 5" 232psi VW95 AAP Industries
Brand: A.A.P. Industries
SKU: 182096
Availability: InStock

SKU: 182096 MPN: VW95

Sale Sold out

Shipping calculated at checkout.

Quantity

Wafer body butterfly valves with NBR seats

View full details

UNSPSC	40141620
Diameter	125
Diameter Inch	5
Size	125mm
Slider Pressure	232
Type	Wafer

Larger diameter butterfly valves supplied as standard with gearbox lever operators
NBR seats and 316 stainless steel discs
Max. pressure: 232psi
Body wafer: cast iron epoxy coated
Body lugged T/E: ductile iron epoxy coated
Disc: 316 - CF8M
Seat cartridge type: nitrile/EPDM
Also available as Viton®

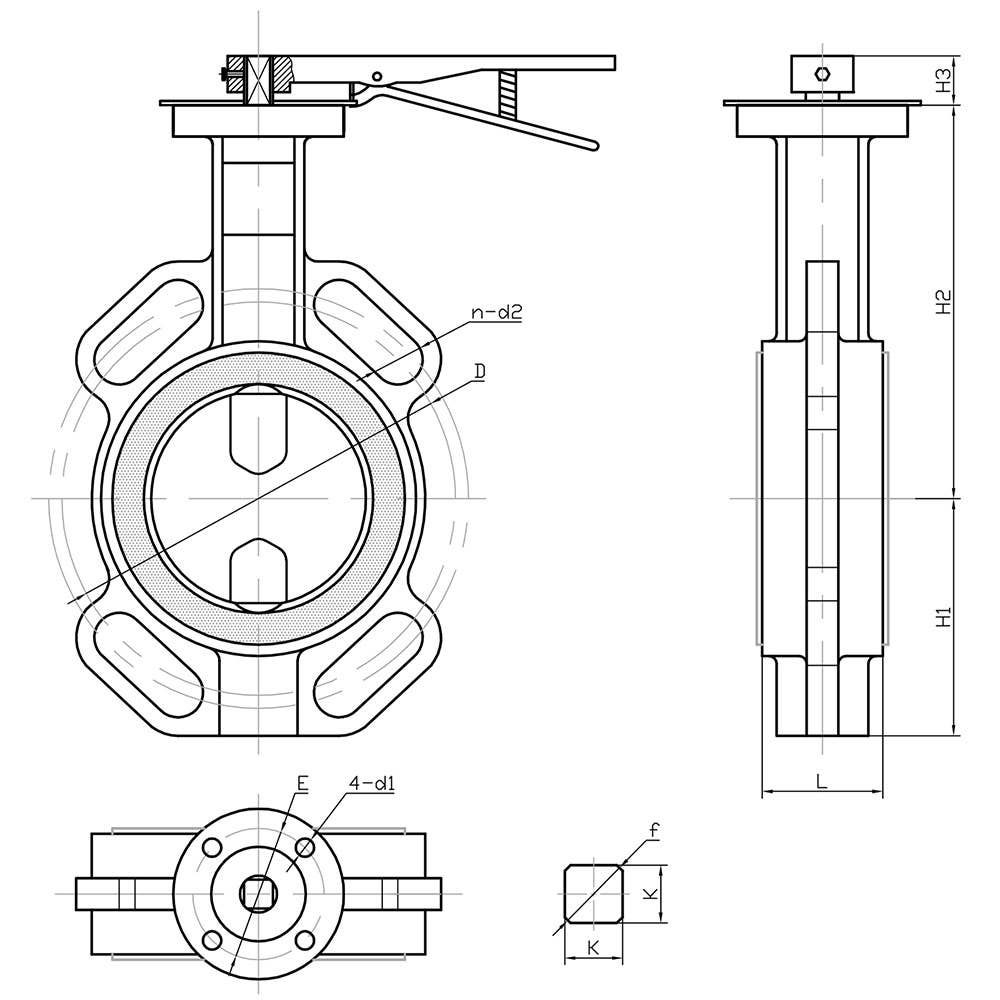

Size: 125mm (5\\)
H1: 127mm
H2: 193mm
H3: 31.8mm
D: 210mm
L: 54.36mm
K: 17mm
F: 22.1mm
E: 70mm
4-D1: 10mm
N-D2: 8 - 19mm
