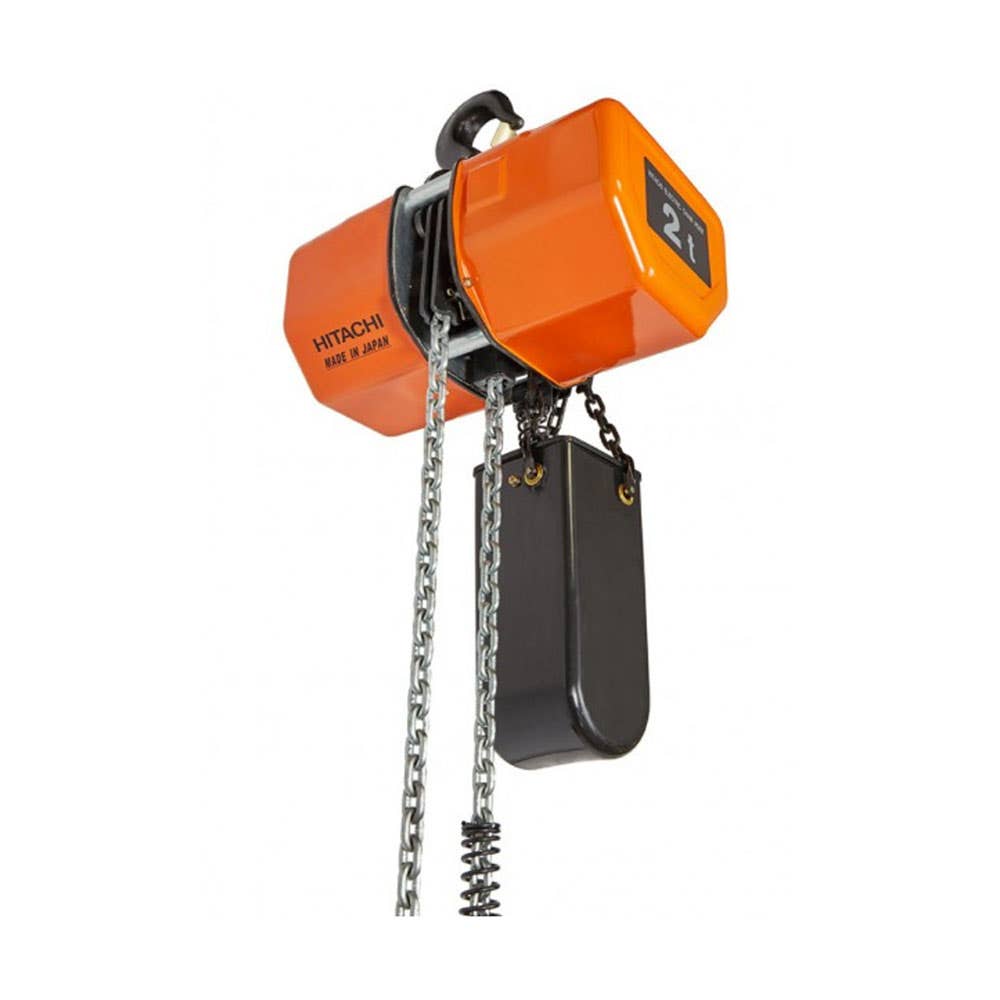

240V Electric Chain Hoist Model 2S1 2,000kg Lift

Name: 240V Electric Chain Hoist Model 2S1 2,000kg Lift
Brand: Hitachi
SKU: 91228036
Availability: InStock

SKU: 91228036 MPN: HEH920

Sale Sold out

Shipping calculated at checkout.

Quantity

manufactured to comply with AS14182

UNSPSC	24101602
Stylecode	HEH

manufactured to comply with AS14182
fully contactorised with high rated contactors and pendant controls; both fitted with mechanical interlocks and 24 Volt control Optional IP65 pendant including E-Stop available
full current and shunt limit switches operate in both directions of hook travel
all models are fitted with an electro-magnetic, self-adjusting disc type brake to the gearbox and the 'F' models have an addition auxillary centrifugal brake fitted to the motor
Overload limiter electro-mechanical device is exclusive to the Hitachi range, boasting a superior overload protection device than the slipping clutch method
Completely enclosed design Entire mechanism including the motor, dual brake system, gears, rotating parts and electrical system can be operated under severe conditions
noiseless chain bucket design with flexible mounting
high quality Grade 80 zinc or nickel plated load chain supplied as standard
IP54 protection rating on all electric hoists and trolleys
motor thermal protection on all Hitachi models
optional radio remote control
ambient temperature requirement of -10 to 40 degrees
class M4 inclusive of 180 starts per hour
special low headroom hoist and trolley arrangements available to suit tight headroom applications
reverse phase protection relay on all models excluding 250kg, 500kg and all single phase models
