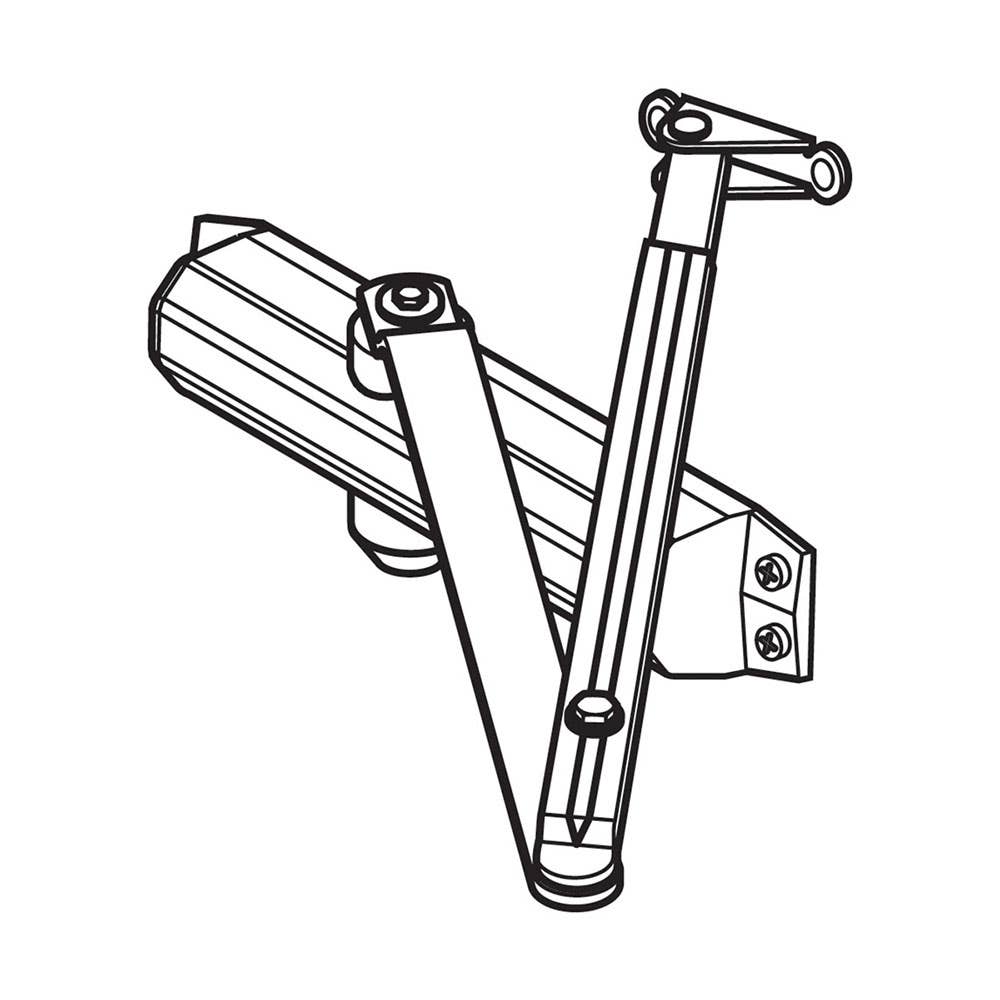

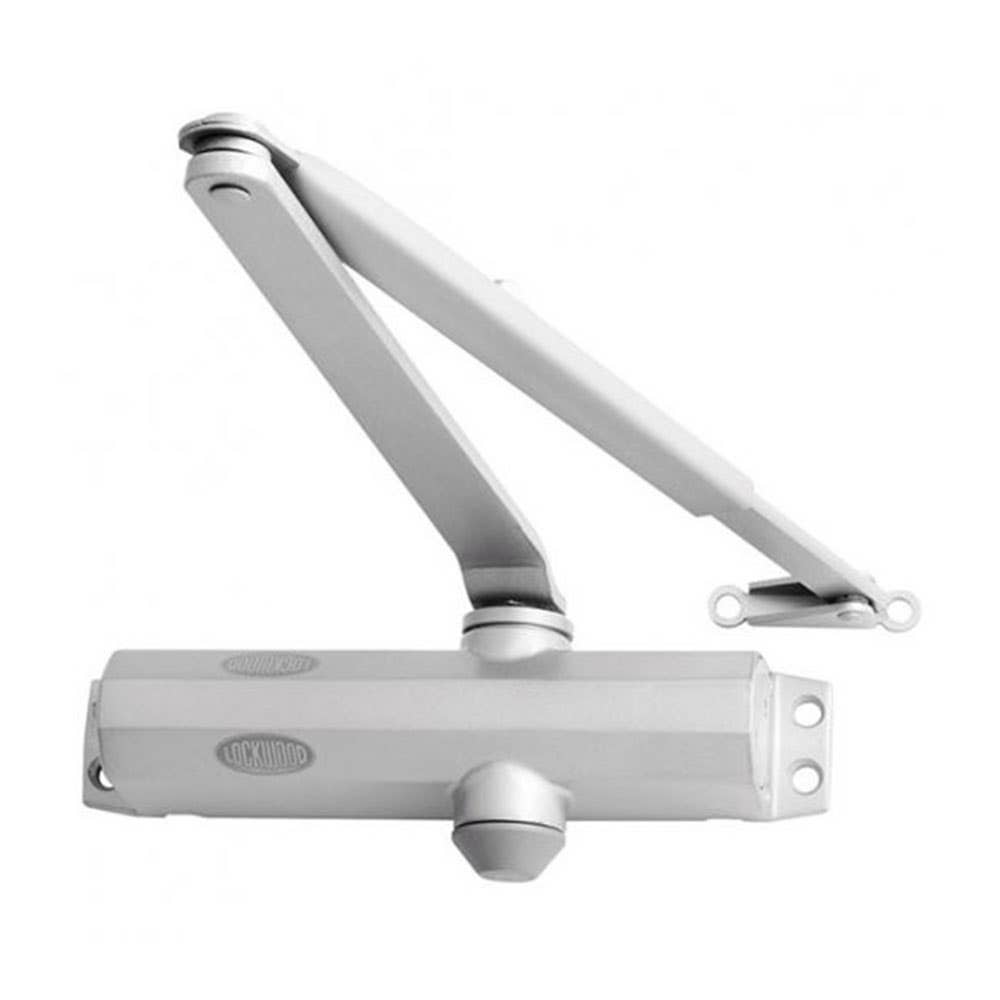

2000 Series Hydraulic Fire Rated Door Closer Standard

Name: 2000 Series Hydraulic Fire Rated Door Closer Standard
Brand: Lockwood
SKU: 91018265
Availability: InStock

SKU: 91018265 MPN: 2024SIL

Sale Sold out

Shipping calculated at checkout.

Quantity

Heavy duty fire rated door closer

UNSPSC	31162801
Catalogue Page	722

Approved on fire door assemblies up to 4 HR, in accordance with Australian Standards AS1905 Part 1 - Fire Resistant Doors 1984
Independent valves control closing and latching speeds which can be readily adjusted onsite when required
All models include parallel arm brackets
The power of the door closer is altered by adjusting the position of the door closer body on the mounting template
Closing force settings: Size 2
Exterior door width: 850mm
Maximum door weight: 40kg
Closing moment (approx.): 13 - 18Nm
Closing force settings: Size 3
Exterior door width: 950mm
Maximum door weight: 60kg
Closing moment (approx.): 18 - 26Nm
Closing force settings: Size 4
Exterior door width: 1,030mm
Maximum door weight: 80kg
Closing moment (approx.): 26 - 37Nm
