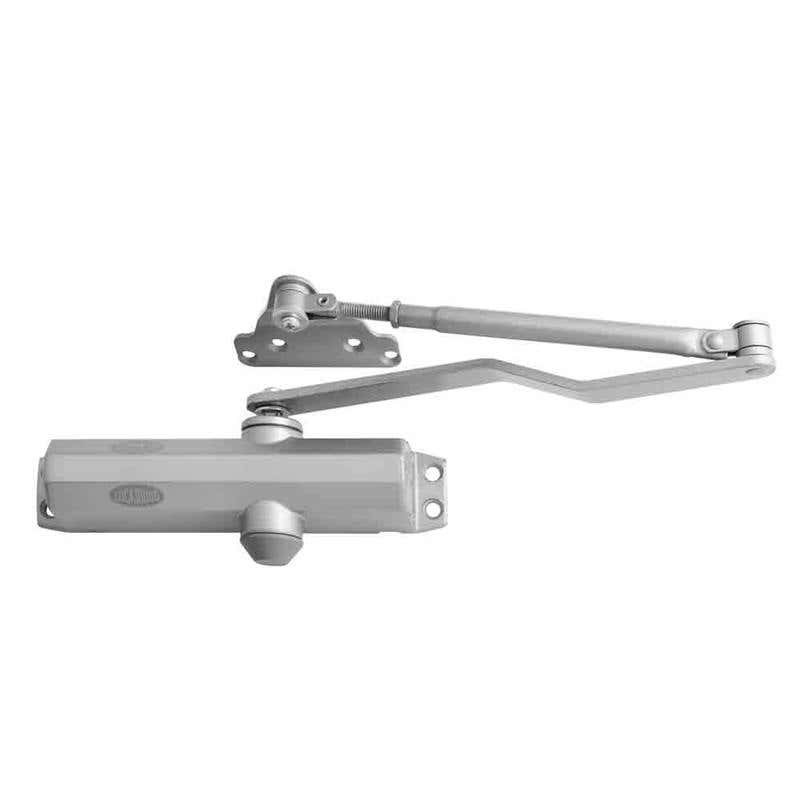

2000 Series Hydraulic Fire Rated Door Closer Offset Parallel

Features

• Approved on fire door assemblies up to 4 HR, in accordance with Australian Standards AS1905 Part 1 - Fire Resistant Doors 1984
• Independent valves control closing and latching speeds which can be readily adjusted onsite when required
• All models include parallel arm brackets
• The power of the door closer is altered by adjusting the position of the door closer body on the mounting template
• Closing force settings: Size 2
• Exterior door width: 850mm
• Maximum door weight: 40kg
• Closing moment (approx.): 13 - 18Nm
• Closing force settings: Size 3
• Exterior door width: 950mm
• Maximum door weight: 60kg
• Closing moment (approx.): 18 - 26Nm
• Closing force settings: Size 4
• Exterior door width: 1,030mm
• Maximum door weight: 80kg
• Closing moment (approx.): 26 - 37Nm

Suitable For

• Doors with 15mm door stop
